$289.00

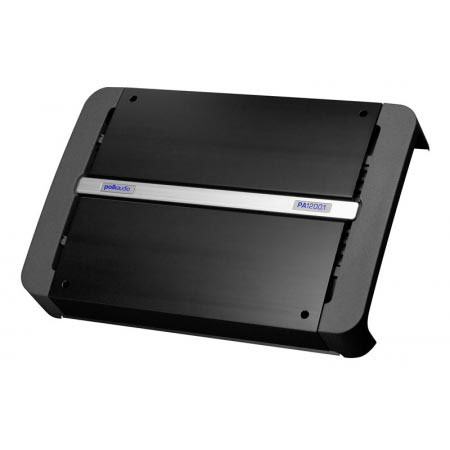

1200W RMS Class D Monoblock PA Series High Performance Car Amplifier
General FeaturesPower Handling
- 400W RMS x 1 at 4 ohms
- 800W RMS x 1 at 2 ohms
- 1200W RMS x 1 at 1 ohms
- Monoblock amplifier for subwoofer use and particularly ideal for the SR Series.
- 1200 watts x 1 (1 ohm), 800 watts x 1 (2 ohm) and 400 watts x 1 (4 ohm) continuous power. CEA-2006 Compliant specifications for true, accurate power ratings.
- 2400 watts x 1 (1 ohm) dynamic power.
- 1 ohm stable design can drive even the most demanding subwoofers.
- Super Efficient Class D Pulse Width Modulation amplifier design. Draws less power and runs cooler so you won't heat up the inside of your vehicle or make the headlights dim.
- High-speed MOSFET switching power supply and high current Bipolar Output Transistors pump maximum voltage and high current to your speakers or subwoofers.
- Double Layer Fiberglass Epoxy Printed Circuit Boards for more rigidity, less shrinkage and a smaller overall amp footprint.
- 6-Way Smart System Protection (SSP) circuits
- Anodized extruded brushed-aluminum cover for maximum heat dissipation and great looks!
- Cast aluminum textured end caps for optimized heat dissipation and hiding of connectors. Solid aluminum logo and model panel back lit in cobalt blue.
- Adjustable 12 dB/octave low-pass crossover (30-250 Hz).
- Switchable 8 dB bass boost at 40Hz for extra bass thump.
- Variable input gain optimizes match with different signal sources (250mv to 7.5V).
- Switchable 24 dB/octave subsonic filter protects ported subwoofers.
- Switchable 180° phase inversion for easy sub to main integration or external bridge mono operation.
- Mounting hardware with rubber isolation grommets and extra fuses included.
- Light Bar/Fan Output- Connect an optional LED light bar or cooling fan for custom installations.
- Multi-Color Status LED gives instant information on amplifier operation.
- Remote Subwoofer Level Adjuster included.
- Master/Slave switch and RCA Outputs for easy daisy chaining of other amplifiers.
- Master/Slave switch allows parallel operation- master amp's gain and crossover settings will be duplicated in "slave" amplifiers for consistent, repeatable settings.
- Power and ground terminals accept bare wire up to 4 AWG. Terminals use standard #2 Phillips head screwdriver- no more hex wrenches to lose or strip!
