$51.95

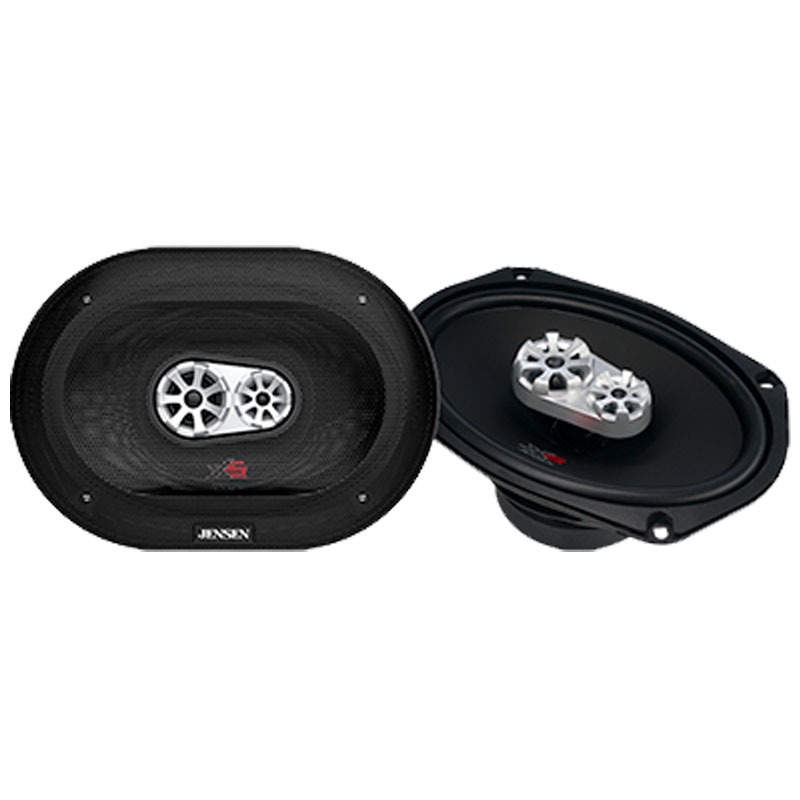

6" x 9" 3-Way Speakers with 1" Voice Coil
General Features
Jensen speakers are designed and engineered in the USA using the latest equipment and technology. The new XS Series of speakers are designed to offer great sound quality, low distortion and high power handling. Silk dome tweeters (using silk imported from Japan) offer smooth high frequency response and life-like sound. To ensure the speakers can withstand the mobile environment, polypropylene cones and rubber surrounds are used in the XS speaker line.
| Specifications | |
|---|---|
| System Type: | 6" x 9" 3-Way Speaker |
| Vented Spider: | No |
| Impedance | 4 Ohms |
| RMS Power | 100W |
| Woofer Surround Material: | NBR (Nitrile Butadiene Rubber) |
| Grille: | Yes |
| Woofer Cone Material: | Polypropylene w/ mica flake |
| Woofer Magnet Weight: | 20 |
| Efficiency 2.83V / 1M: | 94dB |
| Terminals: | 0.205" and 0.110" tab |
| Tweeter: | 25mm silk dome |
| Tweeter Height (from mounting surface): | 11mm (0.43") |
| Diameter: | 6" x 9" |
| Mounting Cutout: | 150mm x 218mm (5.9" x 8.58") |
| Efficiency 1W / 1M: | 91dB |
| Frequency Response: | 32Hz - 35kHz |
| Total Peak Power: | 400W |
| Xmax: | 4.5mm |
| Type: | 3-way |
| Supertweeter: | 13mm silk dome |
| Woofer Spider: | Nomex fiber blend |
| Woofer Voice Coil Diameter: | 1" (25mm) |
| Woofer Basket: | Stamped steel with textured black paint |
| Grille Height: | 29mm (1.15") |
| Mounting Depth: | 85mm (3.35") |
