$89.95

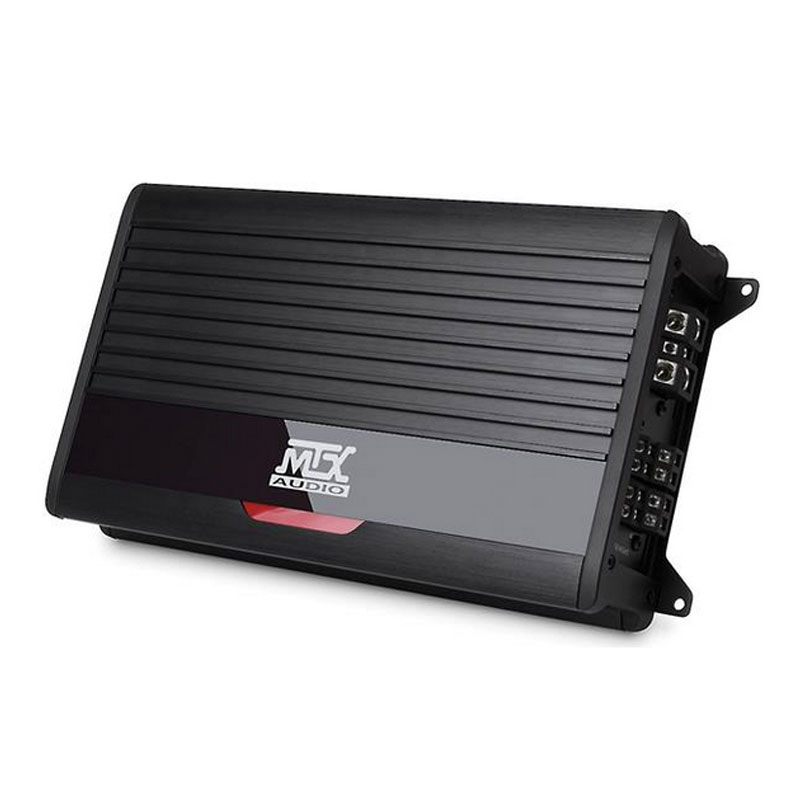

4-channel car amplifier 600W 4-Channel Terminator Series.
General Features
The MTX 4-channel amplifier is capable of handling load impedances down to 2-ohms. The amplifier is rated at 75 Watts RMS x 4 channels in 2 ohms with 1% THD. The Terminator amplifier utilizes Pure N-Channel MOSFET technology for more linear speaker control, enhanced signal-to-noise ratio and more power. This design lets the audio signal travel through fewer parts making the output stage of the amplifier more efficient and giving you more usable power from the amp. Also features. Terminator amplifier is cooled using a variable speed internal fan. The Terminator TN400/4 comes with a set of speaker level input harnesses. This feature makes it easier to add an amplifier to a factory radio or to a receiver with no preamp outputs. When using the speaker-level inputs, the amp automatically turns on when it senses signal from the head unit, eliminating the need for a remote turn-on connection.
| Specifications | |
|---|---|
| Fuse Rating | 50 |
| Power at 2 Ohms (Watts x Channels) | 75 x 4 |
| High-Pass Crossover Frequency | 85 Hz |
| Width (inches) | 10-3/8 |
| Amplifier Class | AB |
| Bass Boost | No |
| Fan Cooled | Yes |
| Low-Pass Slope (dB/octave) | 18 dB |
| RMS Power Output (Watts x Channels) | 45 x 4 |
| Signal to Noise Ratio | 78 dB |
| Preamp Outputs | 1 pair |
| Bridged Power (Watts x Channels) | 150 x 2 |
| Minimum Impedance Unbridged | 2 |
| Best Frequency Response | 20-20k Hz |
| Peak Power Output (Watts x Channels) | 150 x 4 |
| Minimum Impedance Bridged | 4 |
| Height (inches) | 2-5/16 |
| THD at Rated RMS Power | 1% |
| Input Voltage | 14.4v |
| Low-Pass Crossover Frequency | 85 Hz |
| High-Pass Slope (dB/octave) | 18 dB |
| Bass Boost Frequency | N/A |
| Speaker Level Inputs | RCA |
| Depth (inches) | 13-1/4 |
