$66.99

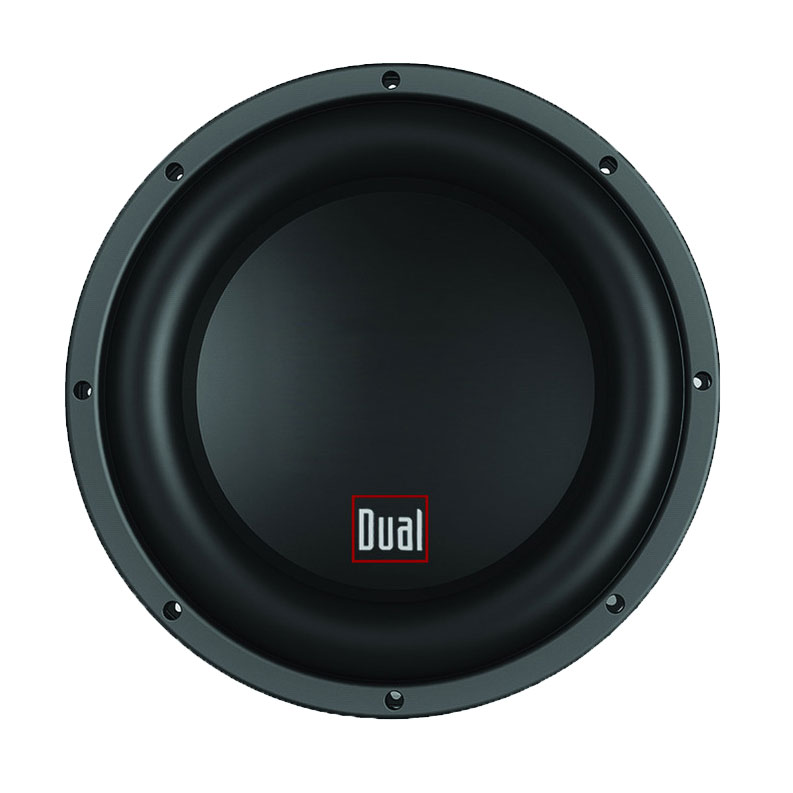

DSW121D 12" 800W 12" DS SERIES DUAL 4 OHM SUBWOOFER
General Features
- Size 12"
- Impedance 4 Ohm
- RMS Power 400 Watts
- Peak Power 800 Watts
- Voice Coil 2"
- Magnet Weight 75oz.
- Frequency Response 30-500Hz
- Sensitivity 87.3dB
- Fs (Hz) 32.07
- Re 4.09
- Le (mH) 2.54
- Qms 3.93
- Qes 0.58
- Qts 0.51
- Vas (Liters) 175.55
- Sd (cm2) 113.09
- Minimum Selaed Box Volume 1 cu. ft
- Optimum Sealed Box Volume 1.5 cu. ft
- Maximum Sealed Box Volume 2 cu. ft
- Minimum Ported Box Volume 1.25 cu. ft
- Optimum Ported Box Volume 1.5 cu. ft
- Maximum Ported Box Volume 2 cu. ft
- Mounting Depth 6.11
- Cut-Out Diameter 10.95
- Total Depth 6.89"
- Total Width 12.44"
