$202.95

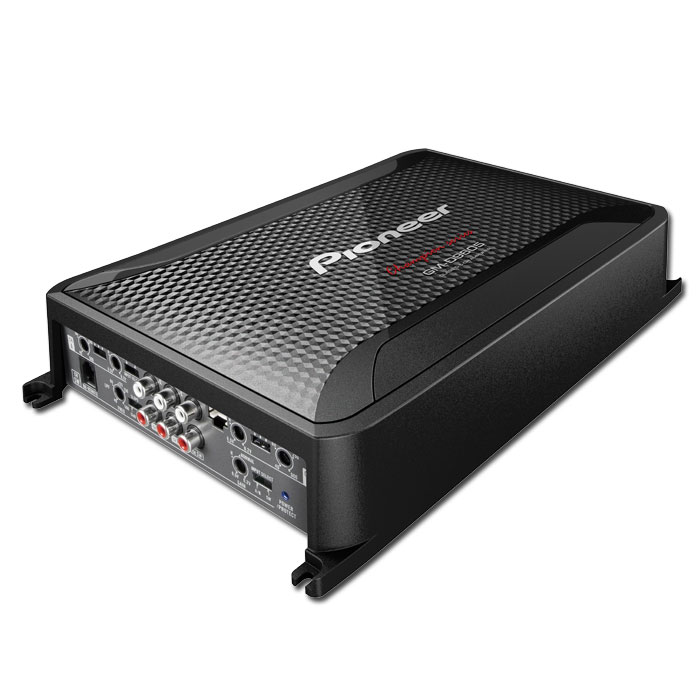

Class D 5-Channel Amplifier with Wired Bass Boost Remote 2000W Peak Power
General Features
The GM-D9505 is 5-channel amplifier produces impressive power in an all-in-one solution designed to deliver big sound without sacrificing space. Also, the 5-channel amplifier is rated at 2000 watts max with the A and B channels rated at 75 watts x 4 (RMS) and the subwoofer output rated at 600 watts at 2 (RMS). The amp features a Bass Boost Remote for optimal bass level adjustment according to listening preferences and music characteristics.
| Specifications | |
|---|---|
| Best Frequency Response | 10-50k Hz |
| High-Pass Slope (dB/octave) | 12 dB/octave |
| Speaker Level Inputs | Harness |
| Depth (inches) | 7-15/16 |
| Low-Pass Slope (dB/octave) | 12 or 24 dB/octave |
| Bass Boost | 0-18 dB |
| THD at Rated RMS Power | 1% |
| Signal to Noise Ratio | 75 dB |
| Input Voltage | 14.4v |
| Preamp Outputs | No |
| RMS Power Output (Watts x Channels) | 75 x 4, 350 x 1 |
| High-Pass Crossover Frequency | 40-500 Hz |
| Bass Boost Frequency | 50 Hz |
| Low-Pass Crossover Frequency | 40-500 Hz |
| Minimum Impedance Bridged | 4 |
| Amplifier Class | FD |
| Minimum Impedance Unbridged | 2 |
| Fan Cooled | No |
| Fuse Rating | 90 |
| Width (inches) | 12-3/8 |
| Height (inches) | 2-3/8 |
| Peak Power Output (Watts x Channels) | --- |
| Power at 2 Ohms (Watts x Channels) | 100 x 4 |
| Bridged Power (Watts x Channels) | 200 x 2 |
