$199.00
Monoblock Class D Subwoofer Amplifier, 500 W x 1 @ 2 O / 250 W x 1 @ 4 O - 14.4V (Refurbished)
General Features
Features:

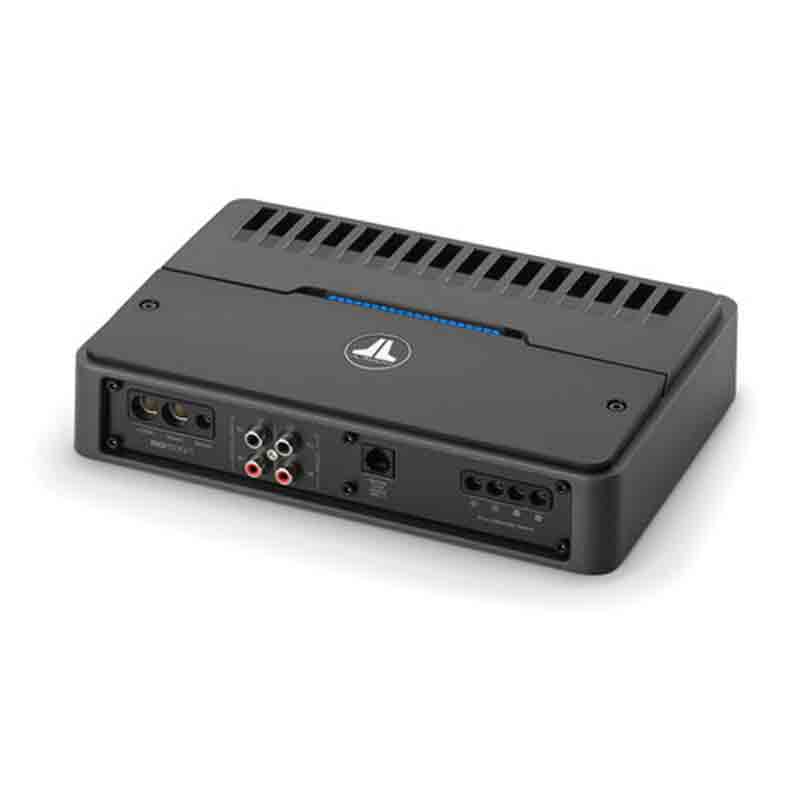

- JL Audio RD500/1
- Class-D 2-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 250 watts x 1 chan.
- 3 ohms: 350 watts x 1 chan.
- 2 ohm: 500 watts x 1 chan.
- 1 ohm: N/A
- Total power output: 1000 watts
- Frequency Response: 7 - 500 Hz
- Total Harmonic Distortion (THD): <1%
- Signal to Noise Ration: >80 dB
- Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +12 dB
- Fuse Rating: 50 A x 1
- 4 gauge power and ground wiring is recommended for installation.
- Dimensions: 9.78"W x 6.96"D x 2.13"H
- Pulse Width Modulated MOSFET power supply
- LED power (green) and protect (red) indicators
- Wired remote bass level control available, sold separately: JL Audio RBC-1
- Soft start turn-on
- Ultra sleek and compact chassis
- Mono channel operation
- NexD™ Technology delivers huge power with low distortion
- Equipped with an onboard LED-clipping indicator
- Top mounted dual color LED strip
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
