$219.64

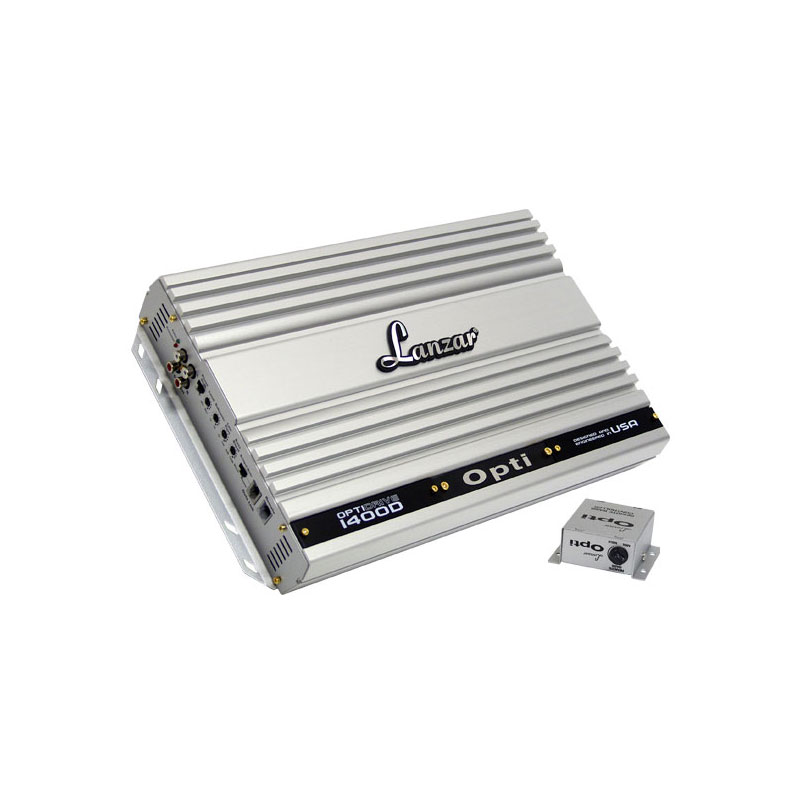

1300 Watt Mono Block MOSFET Digital Power 4ohm Car Amplifier
General Features
The OPTI1400D has a peak power of 1200 Watts with an input impedance of 10k ohms. It's fuse rating is 30A and S/N ratio is 90dB. It is stable at 1 ohm and its sold as a unit.
| Specifications | |
|---|---|
| Line Output Impedance: | 100 Ohm |
| Variable Low Pass Filter: | 50Hz-150Hz, 24dB/Octave |
| Frequency Response: | 15Hz - 150Hz (+/-3dB) |
| PWM (Pulse-Width-Modulated) System | Double Sided Epoxy PCB Circuit Board |
| @ 2 Ohms | 800 Watts RMS Power |
| THD @ 1Watt/4 Ohm: | 0.1% |
| Input Impedance: | 10k Ohm |
| Dimensions: | 10.08'' (W) x 2.12'' (H) x 14.96'' (L) |
| Power Supply | MOSFET |
| Variable Bass Boost: | 0 to +18dB |
| Inputs | Gold Plated RCA Inputs |
| Damping Factor @ 20Hz/4 Ohms: | 400 |
| Fuse Rating: | 30A x 4 |
| S/N Ratio: | 90dB |
| @ 1.3 Ohms | 1000 Watts RMS Power |
| Phase Shift Control: | 0 to 180 |
| Protection | Thermal, Overload Short Protection |
| Mono Block | Subwoofer Amplifier |
| @ 1 Ohm | Stable |
| System | Circuit Board |
| Connections | Custom Terminal Block for Speaker Connections |
| Remote | Remote Bass Control |
| @ 4 Ohms | 500 Watts RMS Power |
| @ 1.3 Ohms | 1300 Watts Max Power |
| Variable Subsonic Filter: | 15Hz-40Hz, 24dB/Octave |
| Input Sensitivity: | 200mV ~ 8V |
| Sold as : | Unit |
