$249.95

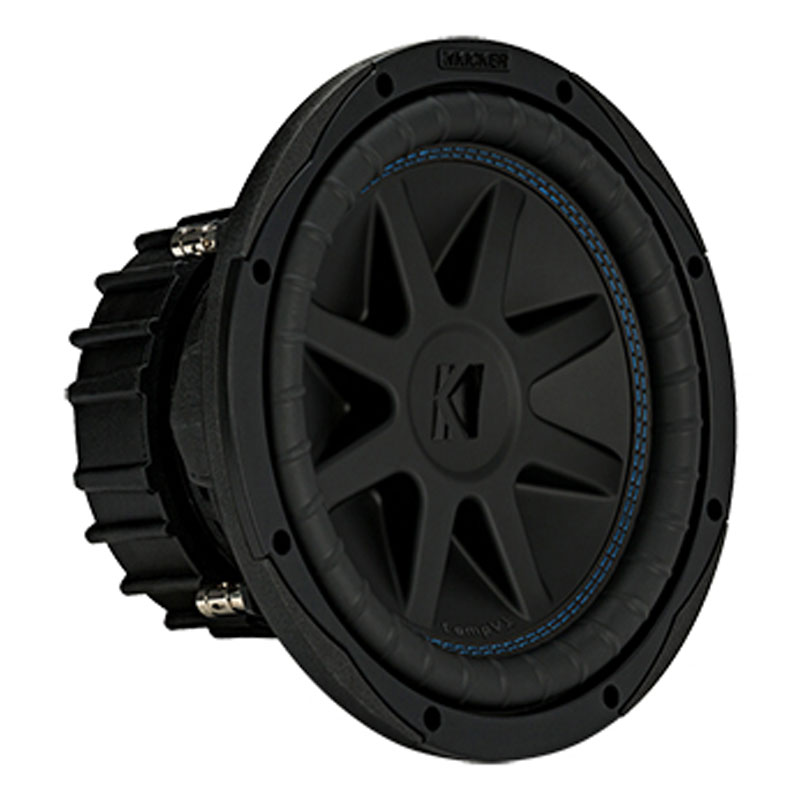

10" 1200W Dual 4-Ohm COMPVX Series Component Car Subwoofer Driver (CompVX104)
General Features
The CompVX 10-Inch Subwoofer has a 4Ω dual voice coil design, to get very most out your amplifier. A ribbed Santoprene® surround keeps the thick polypropylene cone firing in the right direction, while extensive thermal management and a cast-aluminum basket keeps all that power held in check. You get awesome sound with a solid, unmovable base. The CompVX 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power.
| Specifications | |
|---|---|
| Frequency Response | 24 - 500 Hz |
| Peak Power Handling (Watts) | 1200 |
| Top Mount Depth (inches) | 5 15/16 |
| Size | 10 -inch |
| Free-Air | No |
| Xmax (millimeters) | 15.4 |
| ported box volume: | 1.25 - 1.75 cu. ft. |
| Qts | 0.403 |
| Impedance | 4 ohms |
| Dual Voice Coil | Yes |
| Fs (Hz) | 35.4 |
| Vas (liters) | 22.99 |
| sealed box volume: | .8 - 3.0 cu. ft. |
| Cone Material | SoloKon |
| Surround Material | Santoprene |
| Sensitivity | 85.7 dB at 1 watt |
| RMS Power Range (Watts) | 100-600 |
| Cutout Diameter or Length (inches) | 9 3/16 |
