$177.66

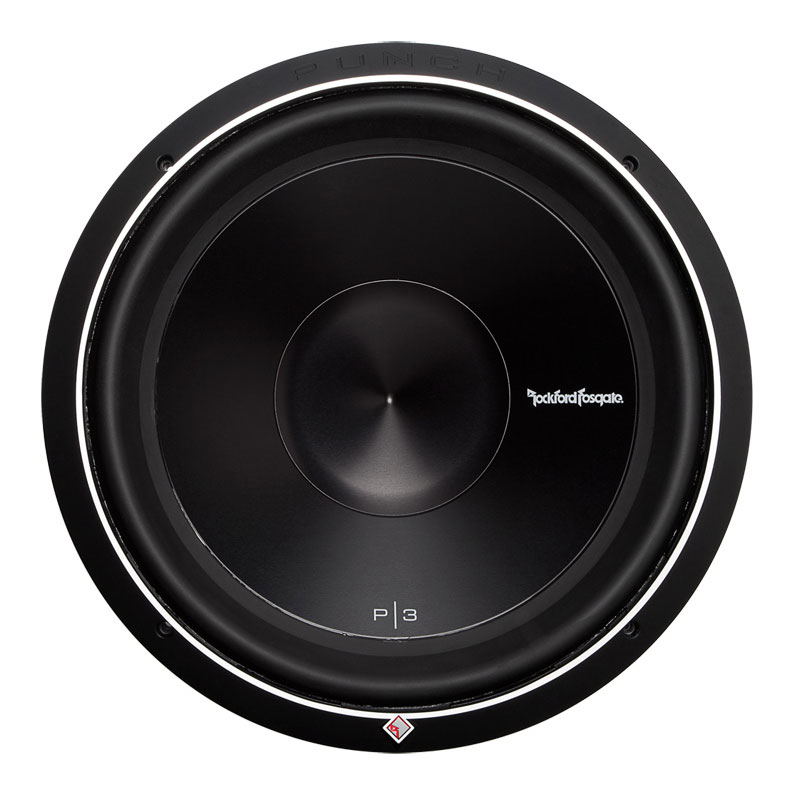

Punch Series 15", 1200 Watts Max Power, P3 2-Ohm Dual Voice Coil Car Subwoofer
General Features
Power Handling
- 600W RMS
- 1200W Peak
General Features
- Anodized aluminum cone and dustcap
- Custom 10-AWG nickel plated push terminals
- Diamond cut cast aluminum trim ring with optional grille
- Extended pole piece and bumped vented backplate
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Protective PVC textured magnet cover
- Soft touch rubber over-mold for greater grip
- StampCast basket with integrated spider venting
- CEA-2031 compliant
Specifications
- Voice Coil Diameter: 2.5"
- Speaker Connector: Dual 10 AWG compression
- Fs (Hz): 21.7
- Qts: 0.54
- Vas (Liters): 155.8
- SPL (dB @ 1w/1m): 86.2
- Xmax (mm): 13.3
- Woofer Displacement: 0.107 cu.ft.
- Cutout Diameter: 13.94"
- Mounting Depth: 7.58
