$207.06
8.5" HVT Sealed Active Subwoofer, 150 Watts Max Power, Proprietary New Speaker Design Technology
General Features

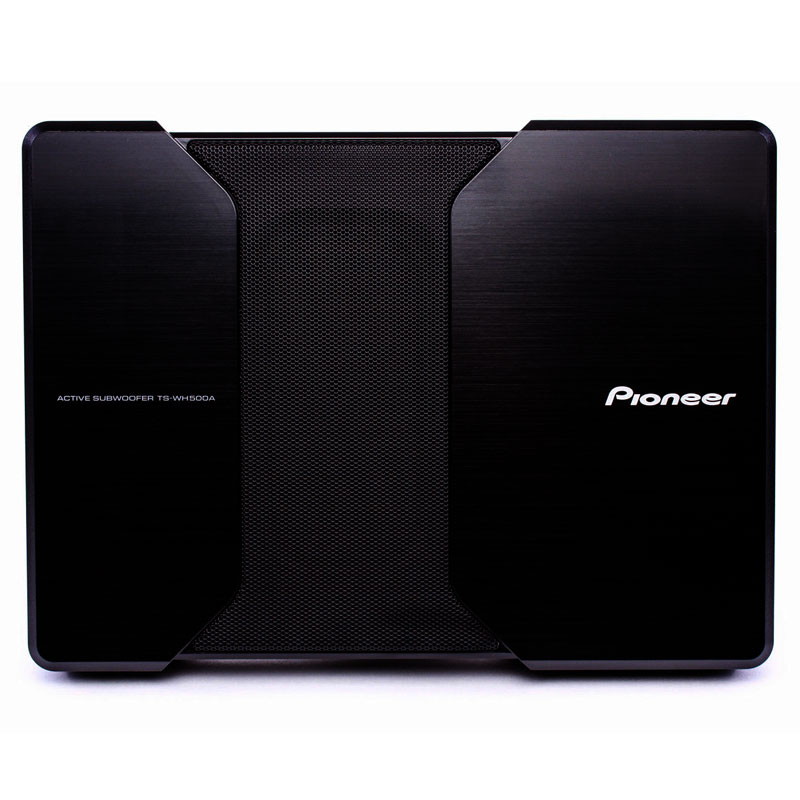

The TS-WH500A amplified subwoofer system is a truly groundbreaking approach in loudspeaker design. HVT technology uses a unique linkage mechanism, which allows the magnet and voice coil of the dual motor structure to be positioned horizontally to the left and the right side of vertically moving dual speaker diaphragms. Combined, the two diaphragms have an effective surface area equal to a conventional 8" subwoofer and fire in a bipolar arrangement, increasing output while also canceling destructive vibrations within the enclosure. The result of this innovative technology is a subwoofer system with significantly reduced physical depth, while maintaining greater excursion and linearity for superior bass reproduction, natural sound quality and higher output.
| Specifications | |
|---|---|
| Second Voice Coil Impedance | 4 ohms |
| Woofer Size (inches) | 7x4 x2 |
| Impedance | 4 ohms |
| Passive Radiator | --- |
| Width | 13-7/16" |
| Second Depth | N/A |
| Sensitivity | 98 dB |
| Enclosure Type | Sealed |
| Height | 2-3/8" |
| Amplifier Power (RMS) | 50 watts |
| Finish Material | Metal/Plastic |
| Woofer Material | Polypropylene |
| Frequency Response | 20-200 |
| Maximum Wattage | 150 watts |
| Crossover Point | 50-125 |
| Grille | Metal |
| Connector Type | RCA/Spkr Wire |
| Bi-amp Inputs | No |
| Depth | 9-7/8" |
