$167.72

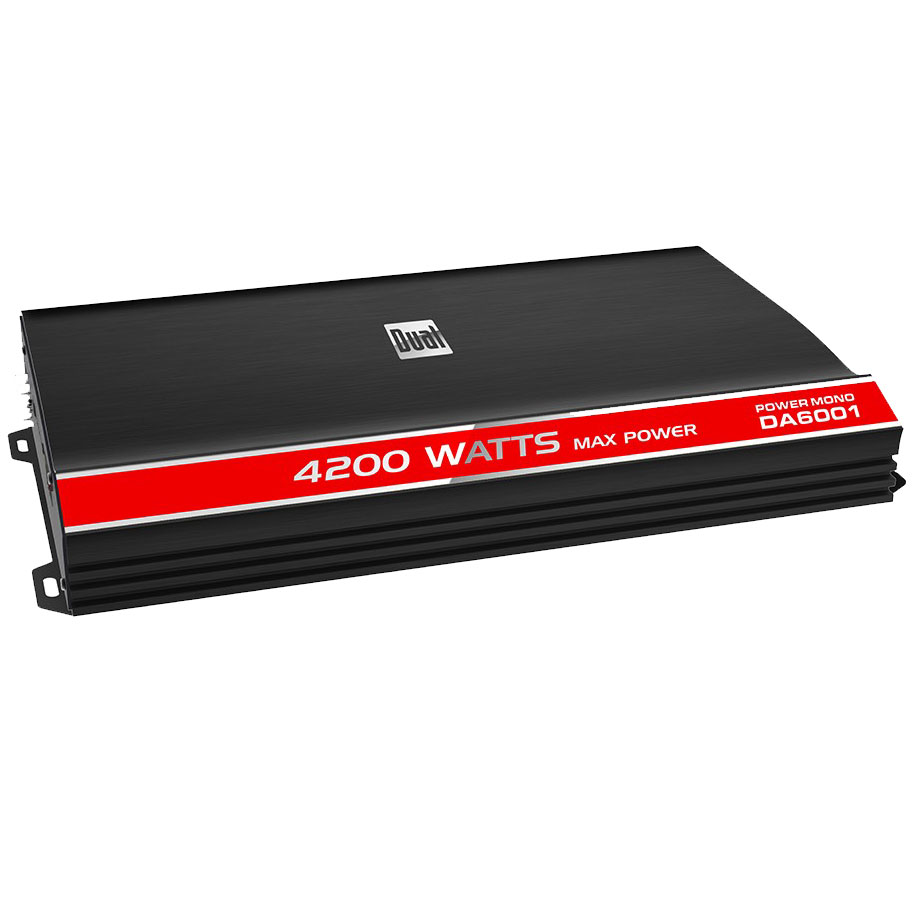

Class D Mono Amplifier 4200Watts Peak Power with Remote bass control included
General Features
- Class D
- 1 Ohm operation
- Full MOSFET DC-DC PWM Power Supply
- 4-way protection
- Low-level inputs (RCA)
- Variable low-pass crossover (40Hz - 150Hz, @ 24dB/octave)
- Variable bass boost @45Hz (0dB – 18dB)
- Variable subsonic filter (20Hz – 50Hz @ 24dB/octave)
- Phase shift 0° or 180° (switchable)
- Variable gain control
- Remote bass control included
- 2 AWG power and ground terminal block
- 4 AWG speaker wire terminal block
- Amplifier bridge mode to connect 2 amplifiers to one sub
- Power Requirements: 14.4V DC (11V to 16V)
- Input Sensitivity: 250mV - 6V
- Frequency Response: 20Hz - 150Hz (0, -3dB)
- Speaker Impedance: 2Ω or 1Ω
- Signal to Noise: > 80dB (THD < 0.5% @ Ω, 12V)
- THD (RMS): < 0.5 %
- Damping factor: > 100
- Number of Channels 1
- RMS Power @ 2 ohms 1200 Watts
- RMS Power @ 1 ohm 1800 Watts
- Peak Power 4200 Watts
- Frequency Response 20Hz - 150Hz
- Signal to Noise Ratio >80dB
- Dims (H x W x D) 2" x 9.3" x 14.5"
