$124.79

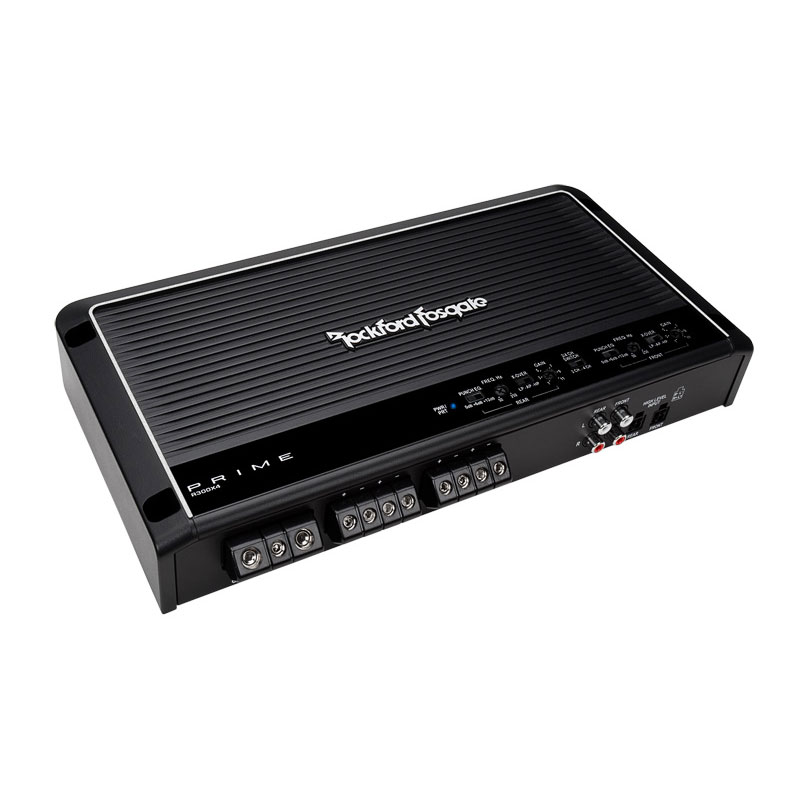

PRIME Series 300 Watts, 4-Channel, Class A/B Car Audio Amplifier with Remote Punch Level Control
General Features
Power Handling:
- 50W RMS x 4 @ 4 Ohms
- 75W RMS x 4 @ 2 Ohms
- 150W RMS x 2 [Bridged] @ 4 Ohms
- 300W MAX Power
General Features:
- Dynamic Power
- (PVC/PowerCube® Measurement):Front Channels:
- TBA Watts x 2 @ 4-Ohms 0° Res
- TBA Watts x 2 @ 2-Ohms 0° Res
- Front Channels:
- TBA Watts x 2 @ 4-Ohms 0° Res
- TBA Watts x 2 @ 2-Ohms 0° Res
- Bridgeable: Yes
- Efficiency (average): TBA% @ 4-Ohm
- TBA% @ 2-Ohm
- Crossover Controls:Front Channels
- High-Pass/Low-Pass (HP/LP): 50-250Hz @ 12dB/octave Butterworth
- Rear Channels
- High-Pass/Low-Pass (HP/LP): 50-250Hz @ 12dB/octave Butterworth
- Tone Controls:Front Channels
- Punch Bass: 0dB/+6dB/+12dB @ 45Hz
- Rear Channels
- Punch Bass: 0dB/+6dB/+12dB @ 45Hz
- Function works when crossover in (LP) position
- Signal Input: Low Level: 2 RCA pair
- Signal Output: N/A
- Power Input Connector: Screw terminal
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Screw terminal
- Speaker Wire Gauge: 8 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling: Convection
- Remote Controls:
- Visual Indicators: Power/Protect LED
- Circuit Topology Class: Class-A/B
- Frequency Response: 20Hz to 20kHz +/-1dB
- Shipping Weight: TBA Lbs.
- (TBA Kg.)
- Dimensions (HxWxL): 1.98 x 6.77 x 13.19 (in)
- 5 x 17.2 x 33.5 (cm)
