$249.99

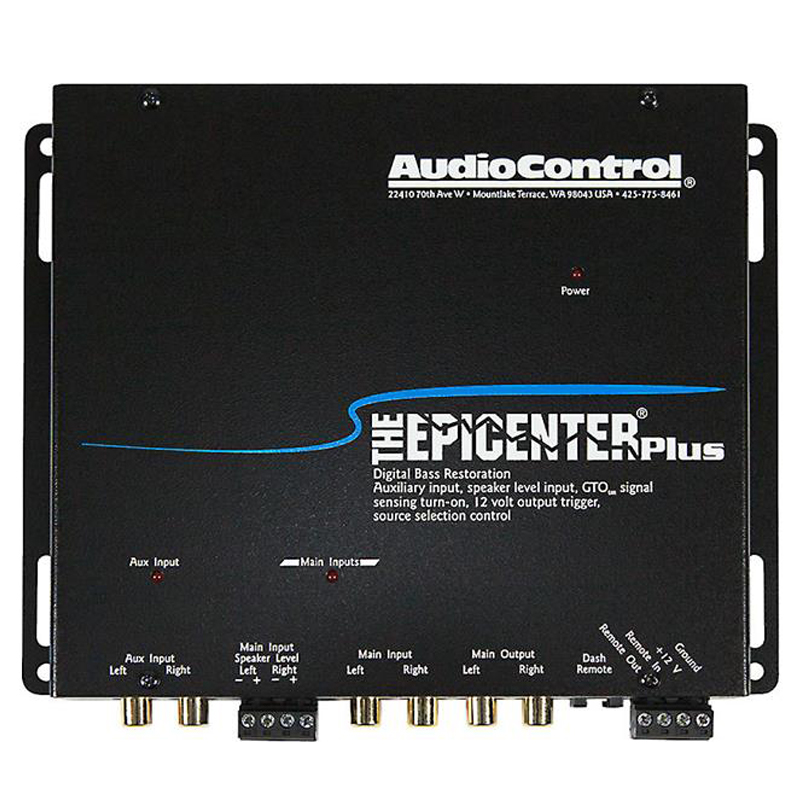

Bass Maximizer and Restoration Processor With Speaker Level Inputs For OEM Integration
General Features
| Specifications | |
|---|---|
| Preamp Outputs: | 1 (2 channels) |
| Maximum Output Level: | 9.5Vrms |
| Maximum Input Level: | 9.5Vrms |
| Aux Input: | 1 (2 channels) |
| Maximum Speaker Level Input: | 400W at 4Ohm |
| Remote In | 12VDC Remote Out (always active when unit is on) |
| Power Supply: | High Headroom PWM Switching |
| Output Impedance: | 150 Ohm |
| Preamp Inputs: | 1 (2 channels) |
| Speaker Level Inputs: | 1 (2 channels) |
| Total Harmonic Distortion: | 0.003% |
| Signal to Noise: | 110dB |
| Input Impedance: | 20k Ohm |
| Frequency Response: | 10Hz-22kHz |
| Balanced Input Noise Rejection: | >60dB |
| Current Draw: | 285mA |
| Recommended Fuse Rating: | 2A |
| Dimensions: | 8W x 6.25D x 1.15H |
| Weight: | 3.5lbs (1.6kg) |
Product Highlights:
- Processor with auxiliary input
- Bass Restoration
- GTO signal sensing
- Pre-Amp Inputs for aftermarket applications
- Active speaker level inputs 400 watt power handling capability
- Stereo axiliary input
- Adjustable Subsonic Filter
- Bass Maximization Circuit
- 12 volt trigger output
- Dash Mount ACR-2 for bass restoration included
