$199.95

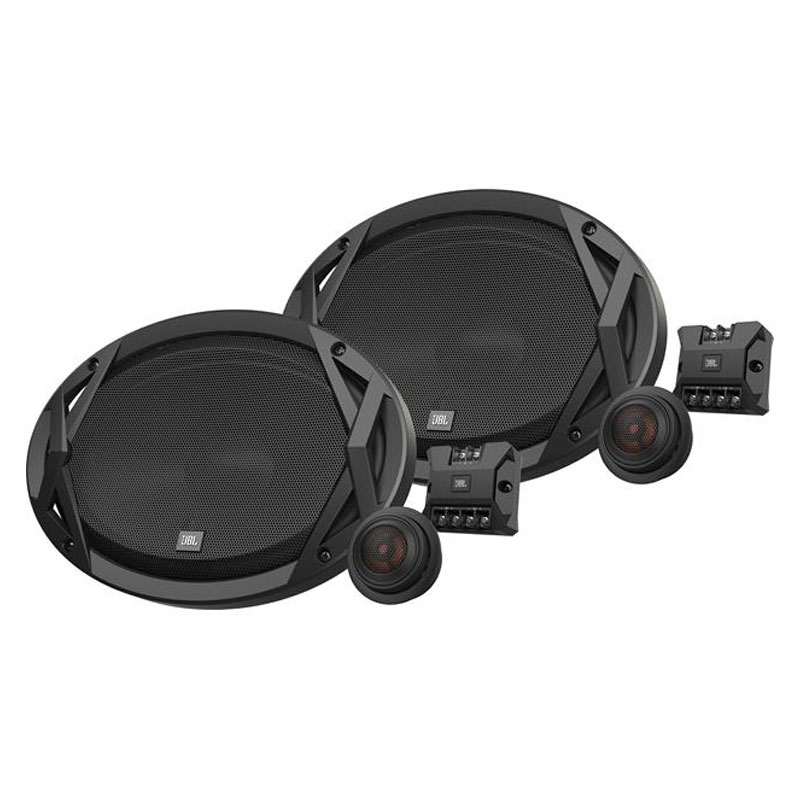

6x9" Club Series 2-Way Component Car Speakers - Pair 540W Peak Power
General Features
| Specifications | |
|---|---|
| Bottom-mount Depth (Inches) | 3 11/16 |
| Minimum RMS Wattage | --- |
| Peak Power Handling (Watts) | 270 |
| Design | 2-way |
| Maximum RMS Wattage | 90 |
| Impedance (Ohms) | 3 |
| Woofer Composition | Polypropylene |
| Sensitivity at 2.83 volts | 93 |
| Frequency Response | 50 - 20k Hz |
| Speaker Size | 6X9 |
| Tweeter Design | 3/4" Edge-Driven Dome |
| Tweeter Composition | PEI |
| Woofer Surround | Rubber |
| Sensitivity (1W at 1 meter) | 89.5 |
| Top-mount Depth (Inches) | 3 1/8 |
| Cutout Diameter or Length (inches) | 0 |
Product Highlights:
- sensitivity: 83 dB @ 2.83 volts
- 3/4" edge-driven soft dome tweeter
- grilles included
- component speaker system includes two woofers, two tweeters, and two crossovers
- 6"x9" polypropylene Plus One™ woofer cone
- handles up to 90 watts RMS (270 watts peak power)
- frequency response: 50-20,000 Hz
- impedance: 3 ohms
- woofer top-mount depth: 3"
What's Included:
- 2 Woofers
- 2 Tweeter surface-mount housings
- 2 Woofer grilles
- Eight 1-1/8" Screws
- 2 Tweeters (each has attached 6" speaker leads)
- Eight 1-3/8" Screws
- 8 Speed clips
- 2 Bottom-mount woofer brackets
- 2 Washers
- Template on box
- 2 JBL window stickers
- 2 Plastic locking nuts
- Six 5/8" Flat head screws
- 2 Crossovers
- 2 Tweeter flush-mount housings
- 2 Threaded flush-mount adapters
- 2 Starfish tweeter mounts
- 2 Nuts
- 2 Adhesive backed foam gaskets
![]()
