$170.00

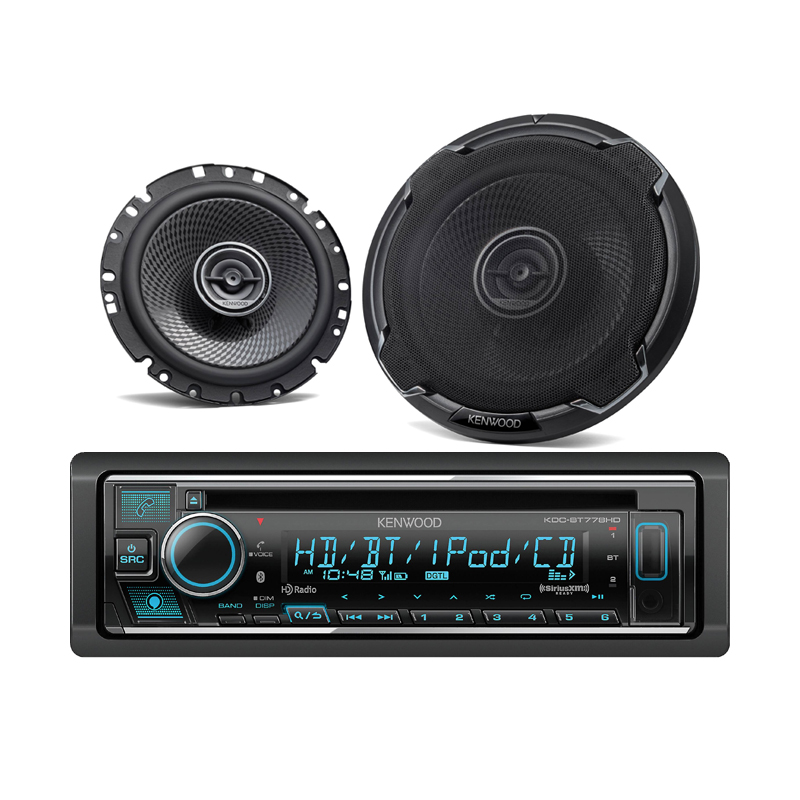

Kenwood KDC-BT778HD + Kenwood KFC-1796PS Exclusive Bundle
General Features
KDC-BT778HD CD Receiver with Bluetooth, HD Radio, Amazon Alexa Ready, Spotify Ready, Pandora, SiriusXM Ready
Features:
- 255 Segment 1.5 Line Text Display
- Amazon Alexa Ready
- Built-in HD Radio Tuner
- Spotify Ready
- Bluetooth Direct Access Button
- Variable Color Illumination
- Front USB & AUX IN
- 3 Preouts 4.0V
FM
- Frequency Range: 87.9MHz to 107.9MHz
- (Frequency step):(200kHz)
- Channel Space Selection:
- Usable Sensitivity:7.2dBf
- S/N 30dB:(0.63μV/75Ω)
- Quieting Sensitivity:15.2dBf
- DIN S/N:46dB:(1.580μV/75Ω)
- Frequency Response (±3.0dB): 30Hz to 15kHz
- S/N: 68.0dB(MONO)
- Stereo Separation: 40dB(1kHz)
Digital FM
- Frequency Range: 87.9MHz - 107.9MHz
- (Frequency step): (200kHz)
- Frequency Response (±3.0dB): 20Hz-20kHz
- S/N: 75dB(STEREO)
AM
- Frequency Range: 530kHz to 1700kHz
- (Frequency step): (10kHz)
- Channel Space Selection:
- Usable Sensitivity: 29dBμ (28.2μV)
- S/N: 20dB
Digital AM
- Frequency Range: 530kHz - 1700kHz
- (Frequency step): (10kHz)
- Frequency Response (±3.0dB)4: 0Hz-15kHz
- S/N: 70dB(STEREO)
CD
- Laser Diode: GaAlAs
- Digital Filter(D/A): 8 Times OverSampling
- Spindle Speed: 500 to 200rpm (CLV)
- Wow & Flutter: Below Measurable Limit
- Frequency Response: 20Hz to 20kHz(±1dB)
- Total Harmonic Distortion: 0.01%(1kHz)
- S/N Ratio (dB): 97dB(1kHz)
- Dynamic Range: 89dB
- Channel Separation: 89dB
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode: Compliant with WINDOWS MEDIA AUDIO
- AAC Decode: AAC-LC ".aac" files
- WAV Decode: -
Preout Level(mV)/Load -Unbalanced: 4000mV/10k ohms
Preout Impedance(ohms): =<600 ohms
Speaker Impedance(ohms): 4 to 8 ohms
USB I/F
- USB: USB 1.1 / 2.0 High Speed
- File System: FAT12 / 16 / 32
- Maximum Supply current: DC5V(DC logo) 1.5A
- MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode:Compliant with Windows Media Audio
- AAC Decode:AAC-LC ".aac",".m4a" files
- WAV Decode:Linear-PCM
- FLAC Decode:FLAC file (Up to 24bit/96kHz)
Aux
- Maximum Power: 50Wx4
- Full Bandwidth Power (at less than 1%THD): 22Wx4
Tone
- Band1: 62.5Hz ±9dB
- Band2:100Hz ±9dB
- Band3:160Hz ±9dB
- Band4:250Hz ±9dB
- Band5:400Hz ±9dB
- Band6:630Hz ±9dB
- Band7:1kHz ±9dB
- Band8:1.6kHz ±9dB
- Band9:2.5kHz ±9dB
- Band10:4kHz ±9dB
- Band11:6.3kHz ±9dB
- Band12:10kHz ±9dB
- Band13:16kHz ±9dB
Bluetooth
- Version: Bluetooth 4.2
- Frequency Range: 2.402 to 2.480GHz
- RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Profile
- HFP 1.7.1 (Hands Free Profile)
- SPP(Serial Port Profile)
- PBAP(Phonebook Access Profile)
- A2DP(Advanced Audio Distribution Profile)
- AVRCP 1.6.1 (Audio/Video Remote Control Profile)
General Features
- Operating voltage: 12V DC car battery
- Installation Size:
- (W) 182(mm) 7-3/16(in)
- (H) 53(mm) 2-1/16(in)
- (D) 155.5(mm) 6-1/8(in)
- Net Weight (Trim plate and Mounting sleeve: Included)1.2(kg) 2.7(lbs)
KFC-1796PS Performance Series 6-3/4" 330 Watts Max Power 2-Way Speaker System
Features:
- Speaker Size: 6-3/4
- Design: 2-way
- Tweeter Design: 1-3/16" Balanced Dome
- Impedance (Ohms): 4
- Woofer Composition: Polypropylene
- Woofer Surround: Rubber
- Sensitivity (1W at 1 meter): 88
- Frequency Response: 72 - 24k Hz
- Maximum RMS Wattage: 100
- Peak Power Handling (Watts): 330
- Top-mount Depth (Inches): 1-15/16
- Cutout Diameter or Length (inches): 5-1/2
