$99.00

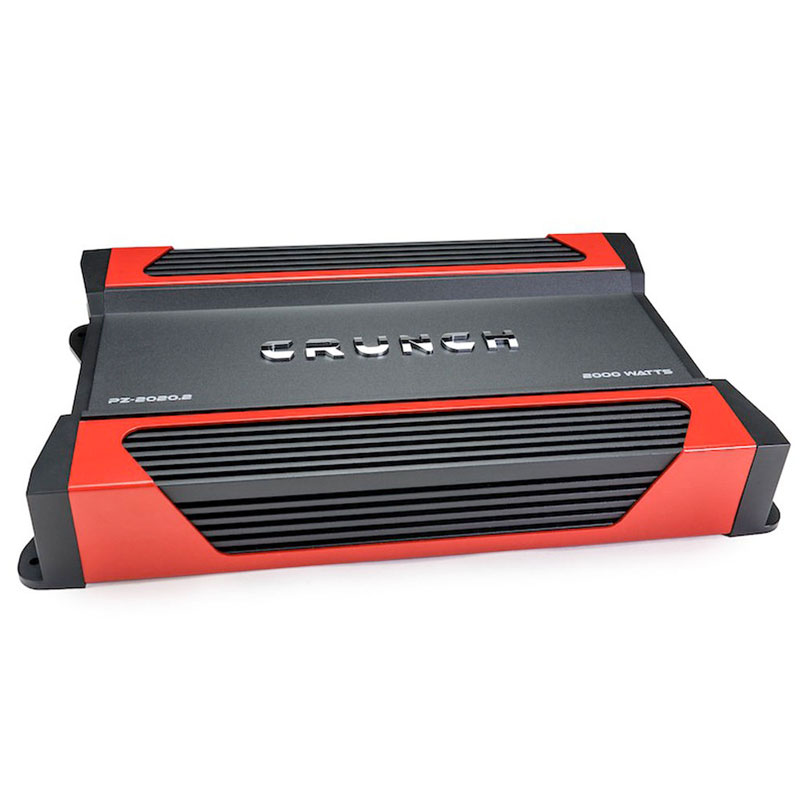

2000 Watts Max Power Powerzone Series 2 ohm Stable 2 Channel Class-A/B Car Amplifier
General Features
Features
- Hi Level Inputs - High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
- Operation Mode - 2 channel operation mode allows either stereo or mono bridged operation
- Crossover Type - Variable electronic crossovers allow for complete control of the sound
- Electronic Equalizer - Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Check specifications for specific frequencies for this amplifier - Class / Topology - Class A/B high sound quality circuit that allows amplifier to develop high levels of power with minimal distortion
- Output Device Technology - Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
- Heat Sink - QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
- Power Supply - Rugged MOSFET Pulse Width Modulation power supply
Allows amplifier to product efficient power without taxing the vehicle electrical system - Output Connections - Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
- Connection Type - Secure connection for all power, ground and speaker connections.
- Full-Range RCA Outputs for Signal Pass Through - Daisy chain multiple amplifier to eliminate additional signal cables from the source unit
- LED System Protection Circuitry Diagnostics - Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel
Specifications:
- Class: Class A/B
- Variable Voltage: 6V - 0.2V
- Signal to Noise: >90dB
- Frequency Response: 10Hz-45KHz
- Crossover : VeraCross, Switchable, FULL / LPF / HPF
- Variable High Pass Crossover 12dB per Octave: 60Hz - 1.2kHz
- Variable Low Pass Crossover 12dB per Octave: 30Hz - 250Hz
- Bass Boost: 0 - 9dB
- Power @ 1 Ohm: N/A
- Power @ 2 Ohms: 2 x 1000 Watts
- Power @ 4 Ohms: 2 x 500 Watts
- Mono Bridged @ 4 Ohms: 1 x 2000 Watts
- Total Channels: 2
- Audio Inputs: RCA
- Audio Outputs: Full Range, RCA
- Speaker Terminal Wire Gauge: Spade Connector, Recommended
- Fusing: 35Ax2
- Total Harmonic Distortion (THD): <0.05%
