$251.96

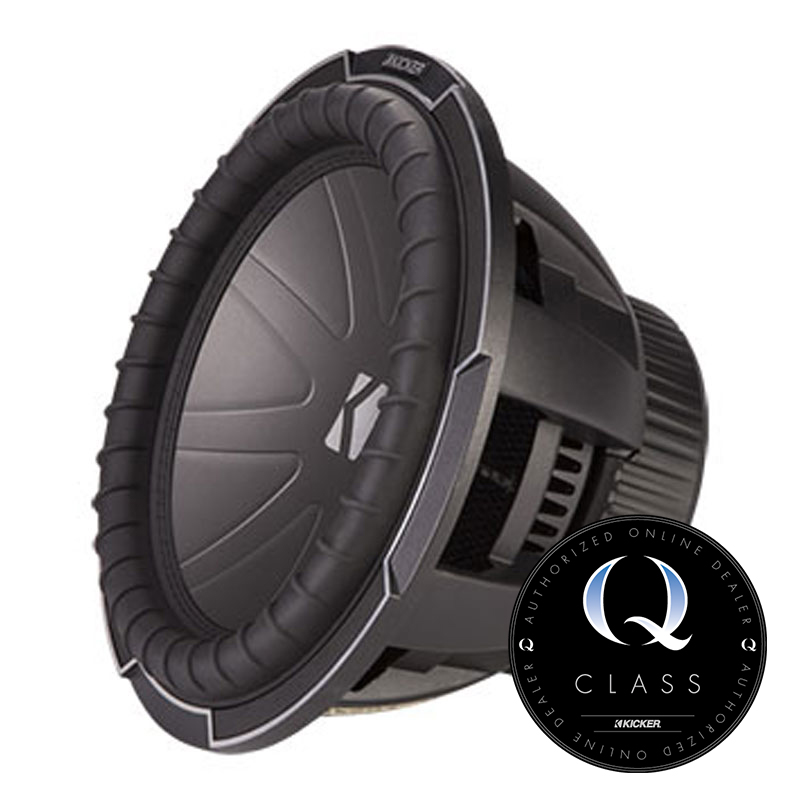

CompQ 12" 1700 Watts Peak Power Subwoofer, DVC, 2-ohm, RoHS Compliant
General Features
The 12" CompQ 2 Ohm
The CompQ 12-Inch Subwoofer is the best sound quality round driver we’ve ever made, with nearly identical construction and performance as our L7 square subs. A cast aluminum frame provides an extremely stable, vibration-free base, so every note gets from the cone to your ears as pure as the day it was recorded. The CompQ 12-Inch Subwoofer works best with a sealed or ported enclosure with 850 watts of recommended power. See below for more details.
Specifications:
- Rated Impedance [Ω]: 2
- Fs [Hz]: 37
- Sensitivity [1W, 1m]: 86.2
- Qts: 0.546
- Qms: 8.878
- Qes: 0.582
- Re [Ω]: 5.94
- Vas [ft³, L]: .91 ,26
- Continuous Power Handling [Watts RMS]: 850
- Outer Frame Dimension [in, cm]: 12-1/2, 31.8
- Mounting Depth [in, cm]: 7-1/8, 18.1
- Mounting Cutout [in, cm]: 11-1/16, 28.1
- Frequency Response [Hz: 20 – 100
Sealed Enclosure Specs:
- Minimum Sealed Volume ft3 (L): .88 (24.92)
- Minimum Sealed Power Handling: 850 RMS
- Maximum Sealed Volume ft3 (L): 2 (56.64)
- Maximum Sealed Power Handling: 850 RMS
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF:
- Box Volume [ft³, L]: .88 (24.92)
- Panel A [in, cm]: 13.5x13.5, 34.3x34.3
- Panel B [in, cm]: 13.5x10.5, 34.3x26.7
- Panel C [in, cm]: 12x10.5, 30.5x26.7
Vented Minimum:
- Box Volume, ft³ (L) + port displacement: 1.75, 49.6
- Port Opening Size, in x in (cm x cm): 2.5x13.25, 6.4x34
- Port Length, in (cm): 22.5, 57
- Power Handling, RMS: 850
Vented Maximum:
- Box Volume, ft³ (L): 3.25, 92
- Port Opening, in x in (cm x cm): 3x13.25, 7.6x34
- Port Length, in (cm): 14.5, 37
- Power Handling, Watts RMS: 850
What's Included?
- One 12" Round dual 2-ohm voice coil woofer
- Kicker logo
- 4 Hardware covers
- Template
- Kicker 42CWQ122 Owner's Manual
![PDF Manual]()
Onlinecarstereo is a long time authorized retailed of Kicker products. We source our inventory from accredited dealers to make sure your orders are authentic and warrantied. We always strive total customer satisfaction and on-time delivery.
