$379.00

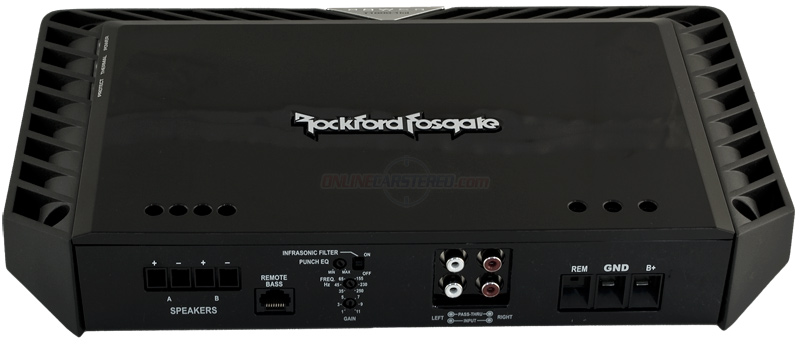

1000W Class-bd Mono Car Amplifier
General FeaturesPower Handling
- 350W RMS x 1 @ 4-Ohms
- 650W RMS x 1 @ 2-Ohms
- 1000W RMS x 1 @ 1-Ohm
- 24dB/octave crossover
- 4 Gauge power/ground terminals
- Audiophile grade speaker connections
- Infrasonic filter
- MOSFET output stage
- MOSFET power supply
- RCA pass-thru
- Total Power(total sum of 'rated power'): 1000 Watts
- Efficiency (average): 86% @ 4-Ohm, 85% @ 2-Ohm, 80% @ 1-Ohm
- Crossover Controls
- Low-Pass (LP): 35Hz-250Hz @ 24dB/octave Butterworth
- Infrasonic: 12dB/octave Butterworth, -3dB @ 28Hz
- Tone Controls: Bass: 0dB to +18dB @ 45Hz
- Signal Input: 1 RCA pair
- Signal Output: 1 RCA pair
- Power Input Connector: Block
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Block
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote ControlsOptional: Remote PEQ (overrides built-in Punch Bass)
- Visual Indicators
- Power (Blue LED)
- Thermal (Red LED)
- Protect (Yellow LED)
- Circuit Topology Class: Class bd
- Frequency Response: 20Hz to 250Hz +/-0.5dB
- Dimensions (HxWxL): 2.14 x 8.14 x 13.66 (in)
