$165.00

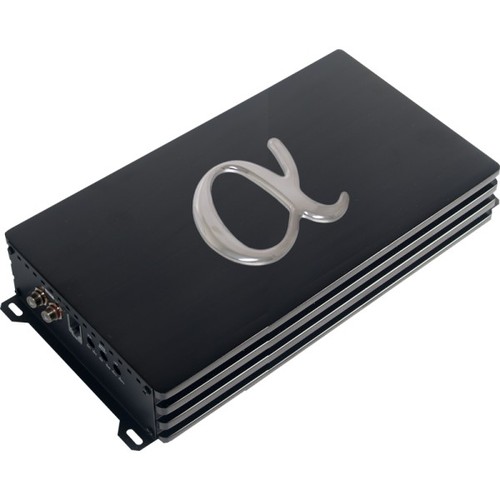

1300W RMS Monoblock Class D Car Audio Amplifier
General Features
Power Handling:
- 500W RMS x 1 @ 4 Ohms
- 800W RMS x 1 @ 2 Ohms
- 1300W RMS x 1 @ 1 Ohm
- Class D Circuitry
- 1 Ohm Stable
- Ultra Compact Chassis Design
- Mil Spec Double-Sided Glass Epoxy
- FR4 Circuit Board
- Nickel-Plated Block Terminal
- 4 Way Protection Circuitry
- Thermal, Short Circuit, Overload. and DC offset
- Low Level inputs
- Input Sensitivity: 200 mV-8V
- Variable Low-Pass Crossover: 50 Hz - 250 Hz
- Frequency Response: 10 Hz - 20 KHz
- THD: 0.12%
- Variable Bass Boost: 0-18 dB
- S/N Ratio: > 80 dB (+/-3 dB)
- Wired remote subwoofer level control included
- 2 gauge power and ground wiring recommended
- Dimension: 5.93" x 2" 11.81"
