$79.00

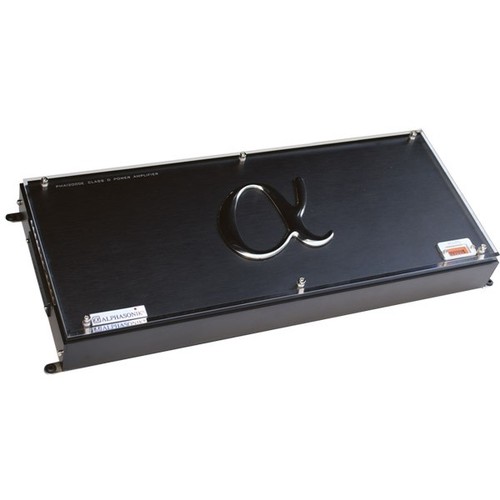

500W RMS 2-Channel Class AB MOSFET Car Audio Amplifier
General Features
Power Handling:
- 150W RMS x 2 @ 4 Ohms
- 250W RMS x 2 @ 2 Ohms
- 500W RMS x 1 [Bridged] @ 4 Ohms
- 2 Ohm Stereo Stable
- Input Sensitivity: (200mV - 8V)
- Frequency Reponse: 15 Hz - 20 kHz
- THD: 0.08%
- S/N Ratio: >90Db(+/-3 dB)
- Variable High-Pass Crossover: 45 Hz - 250 Hz
- Variable Low-Pass Crossover: 50 Hz - 250 Hz
- Variable Bass Boost: 0 - 12 dB
- 18 Db per Octave Crossover Slopes
- 4 Way Protection Circuitry
- Thermal, Short Circuit, Overload , And DC Offset
- MIl Spec Double-Sided Glass Epoxy FR4 Circuit Board
- Nickel-Plated Terminal Block
- Tiffany Style RCA's
- 4 gauge power and ground wiring recommended
- Dimensions: 8.27" L x 2" H x 5.93" W
