$139.00

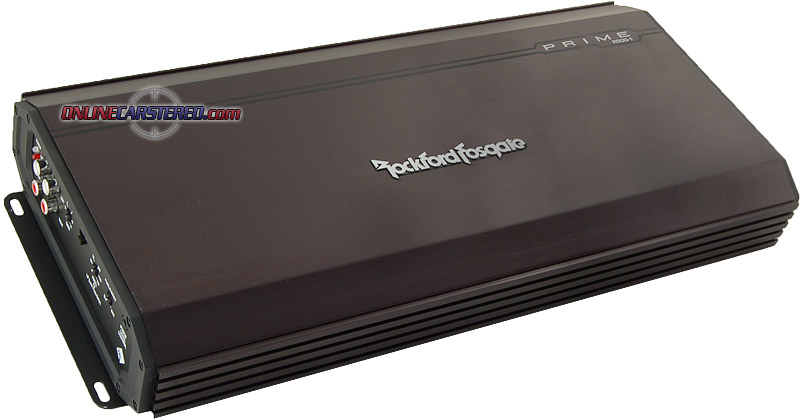

500W RMS Mono Block Prime Series Car Amplifier
General FeaturesPower Output
- 320 Watts RMS x 1 @ 4-Ohms
- 500 Watts RMS x 1 @ 2-Ohms
- Efficiency (average): 67% @ 4-Ohm
- 58% @ 2-Ohm
- Low Pass (LP): 40Hz-130Hz @ 12dB/octave Butterworth
- Tone Controls - Punch Bass: 0dB to +12dB @ 45Hz
- Signal Input - Low Level: 1 RCA pair
- Signal Output - Low Level: 1 RCA pair
- Power Input Connector: Screw terminal barrier strip
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Screw terminal barrier strip
- Speaker Wire Gauge: 8 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling Convection
- Remote Controls: Punch Level Control (when connected, is linked to "gain control" to provide remote output level)
- Visual Indicators: Power/Protect
- Circuit Topology Class: Class A/B
- Frequency Response: 20Hz to 250Hz +/-1dB
- Dimensions (HxWxL): 2.40 x 7.67 x 16.65
