$119.00

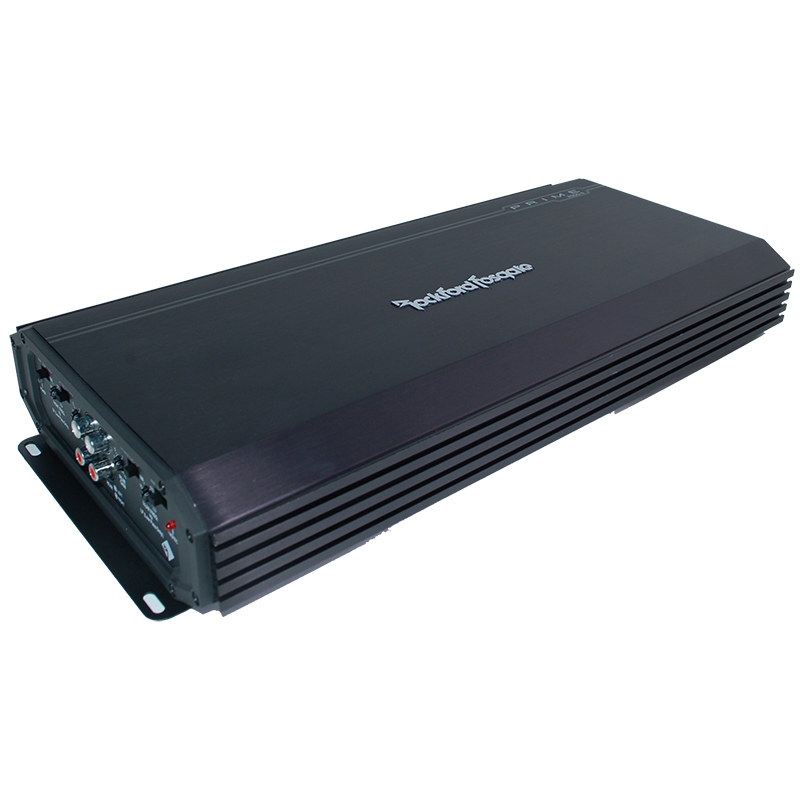

300W 4-Channel Prime Series Car Amplifier
General Features
- 50 Watts RMS x 4 @ 4-Ohms
- 75 Watts RMS x 4 @ 2-Ohms
- 150 Watts RMS x 2 @ 4-Ohms Bridged/Mono
- Front Channels:
- 62 Watts x 2 @ 4-Ohms 0 degrees Res
- 98 Watts x 2 @ 2-Ohms 0 degrees Res
- Front Channels:
- 61 Watts x 2 @ 4-Ohms 0 degrees Res
- 89 Watts x 2 @ 2-Ohms 0 degrees Res
- Bridgeable
- Efficiency (average): 59% @ 4-Ohm/ 49% @ 2-Ohm
- Front Channels High-Pass (HP): 80Hz @ 12dB/octave Butterworth
- Front Channels Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth
- Rear Channels High-Pass (HP): 80Hz @ 12dB/octave Butterworth
- Rear Channels Low-Pass (LP): 50Hz-250Hz @ 12dB/octave Butterworth
- Front Channel Tone Controls: Punch Bass: 0dB/+6dB/+12dB @ 45Hz
- Rear Channel Tone Controls: Punch Bass: 0dB/+6dB/+12dB @ 45Hz
- Function works when crossover in (LP) position
- Signal Input - Low Level: 2 RCA pair
- Power Input Connector: Screw terminal barrier strip
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Screw terminal barrier strip
- Speaker Wire Gauge: 8 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling: Convection
- Visual Indicators: Power/Protect
- Circuit Topology Class: Class A/B
- Frequency Response: 20Hz to 20kHz +/-1dB
- Dimensions (HxWxL): 2.40 x 7.67 x 17.09
